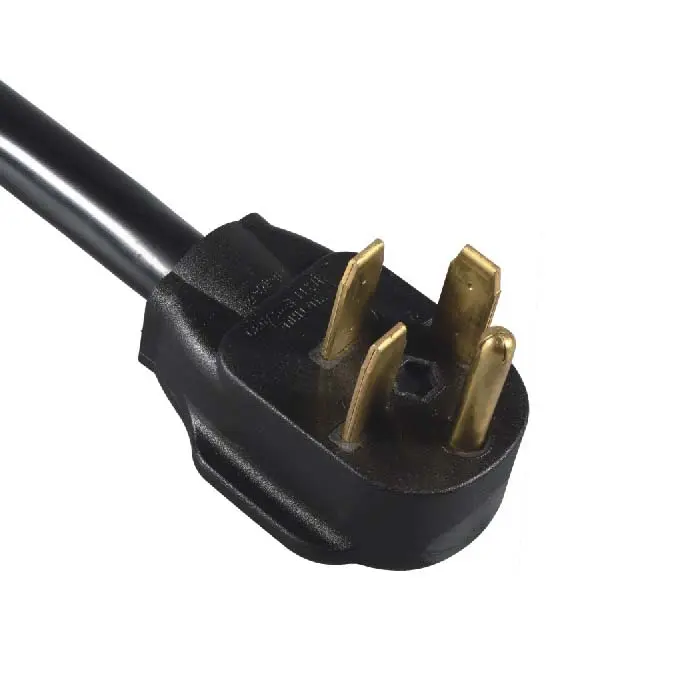

NEMA 15-50P Power Cord
- Plug type: America 50A Straight blade plug
- Standard:NEMA 15-50P
- Approvals:UL, cUL
- Electricity:50A, 250V
- Number of Poles and Wires:3 pole 4 wires
- Cable length:Custom length
- End Options:Strain relief clamp, terminals
- Color:Black is normal,Custom color available
- Outer Mold Material:PVC,Rubber
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications:RoHS, REACH, PAHS
The NEMA 15-50P is a heavy-duty, four-prong plug commonly used for high-powered appliances like:
- Electric ranges: It’s the standard plug for most residential electric ranges in North America.
- Electric ovens: Similar to ranges, many electric ovens also use NEMA 15-50P plugs.
- Other high-wattage appliances: Industrial equipment, welders, and some air conditioners might also utilize this plug type.
Here’s a breakdown of its key features:
- NEMA: Stands for National Electrical Manufacturers Association, the organization that sets standards for electrical equipment in North America.
- 15: Refers to the specific plug configuration with a unique pin and blade arrangement.
- 50: Indicates the maximum amperage rating, which is 50 amps in this case.
- P: Denotes that it’s a plug (as opposed to a receptacle or outlet).
Key characteristics:
- Voltage: 240/250 volts (double the standard household voltage of 120 volts)
- Power output: Up to 12,500 watts (12.5 kW)
- Plug type: 4-prong with two hot prongs, one neutral prong, and one grounding prong
- Applications: Primarily for high-powered appliances like electric ranges and ovens, but can also be used for industrial equipment and some air conditioners.
Important things to note about NEMA 15-50P:
- Not for EV charging: While it shares similarities with the NEMA 14-50P commonly used for Level 2 EV charging, the NEMA 15-50P has a slightly different configuration and voltage, making it not suitable for EV charging. Using it for EVs could damage the charger or car.
- Requires specific outlet: You’ll need a matching NEMA 15-50 receptacle, typically installed by a qualified electrician, to use this plug. Standard household outlets are not compatible.
- High power: Always handle this plug with caution due to its high power rating. Ensure the circuit and wiring are properly rated to handle the load and follow safety guidelines when using high-powered electrical equipment.
